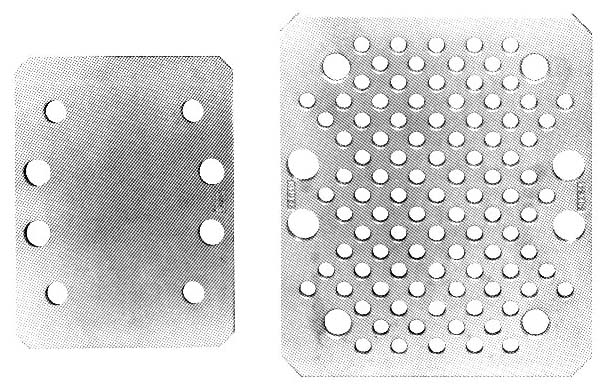

STANDARD FLAT BOTTOM BOARDS FOR AUTOMATIC MOLDING
MACHINES
|
| Hines cast aluminum bottom boards are available for use on all automatic match plate molding machines. These top quality boards are designed for rugged usage and are 100% fixture checked for dimensional tolerances and flatness. They are the finest on the market. You can be assured of exceptionally long service. |
|
STANDARD SPECIFICATIONS
|
|
Material: Cast Aluminum Typical Sizes: 14 7/16" X 18 7/16" X 1/2" 14 7/16" X 19 7/16" X 1/2" 20 1/2" x 24 1/2" X 9/16" 20 1/2" x 24 1/2" x 5/8" |
|

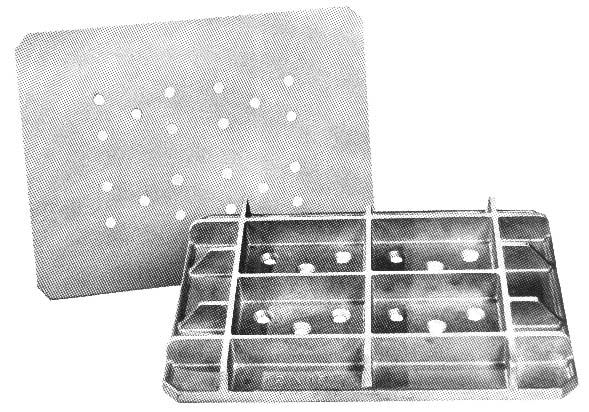

STANDARD RIBBED BOTTOM BOARDS FOR CONVENTIOPNAL MOLDING
|
| Hines standard aluminum bottom boards for conventional molding are cast with heavy reinforcing ribs. This construction eliminates mold breakage problems usually experienced with wooden boards. Reinforcing ribs are rounded, making the boards suitable for use on roller conveyors, as well as on pallets and side floors. They are also ideal for use as core plates. |
|
STANDARD SPECIFICATIONS
|
| Material: Cast Aluminum Widths: 10" to 24" Lengths: 10" to 24" Plate Thickness: ¼" Overall Depth: (plate and ribs) 1¾" Weight: (approximate) .04 lb. per sq. in. Other sizes as requested. |
 |
 |
 |
